Ironmongery
Our range of ironmongery is suitable for upgrading existing washrooms or completing full renovations. Designed for reliability and durability, our standard ironmongery is made from polyester powder-coated aluminium in RAL number 7024, with a high quality fine textured finish. This provides excellent corrosion resistance and ensures long-lasting performance.
The fittings are universal and include the appropriate fixings to suit both our Lutley range (18mm Melamine Faced Chipboard) and our Hanley range (12mm Solid Grade Compact Laminate).
Our standard ironmongery is available to purchase from our online store, where you will also find our bundles tailored to specific cubicle layouts.
Shop All
(12/18mm)

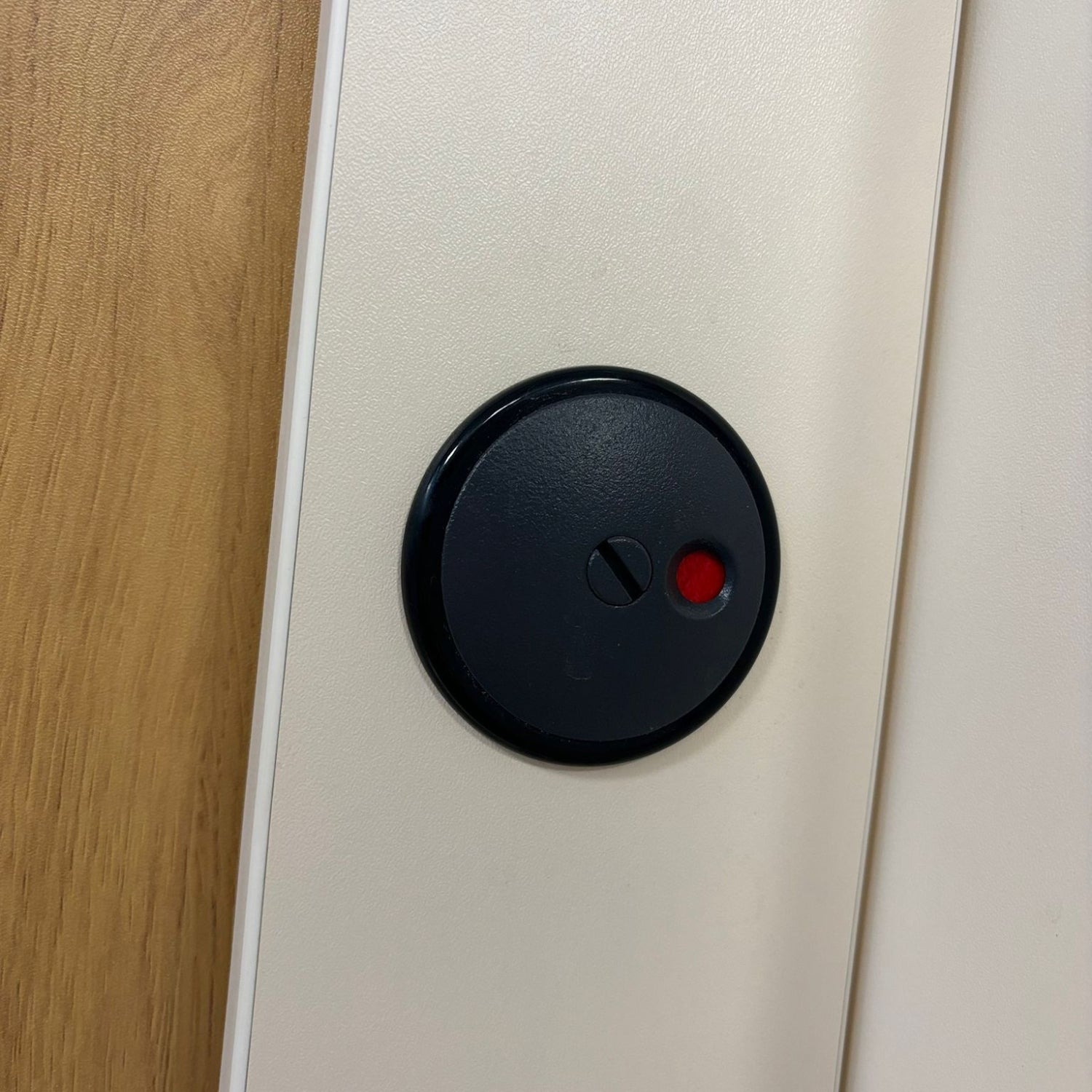

Atlanta Latch
The Atlanta Latch is designed for quick and easy fitting on either doors or pilasters, suitable for both inward and outward opening cubicles. It’s compatible with solid grade laminate (SGL) and melamine-faced chipboard (MFC) materials.
This modern, impact-resistant latch is supplied as standard in a durable powder-coated finish in RAL 7024, with additional colour options available upon request. Its compact design ensures an attractive appearance while remaining user-friendly for both children and disabled users.
A practical, reliable, and excellent value latch for all washroom applications.
Shop Atlanta LatchHinge Packs 12mm (3nr)

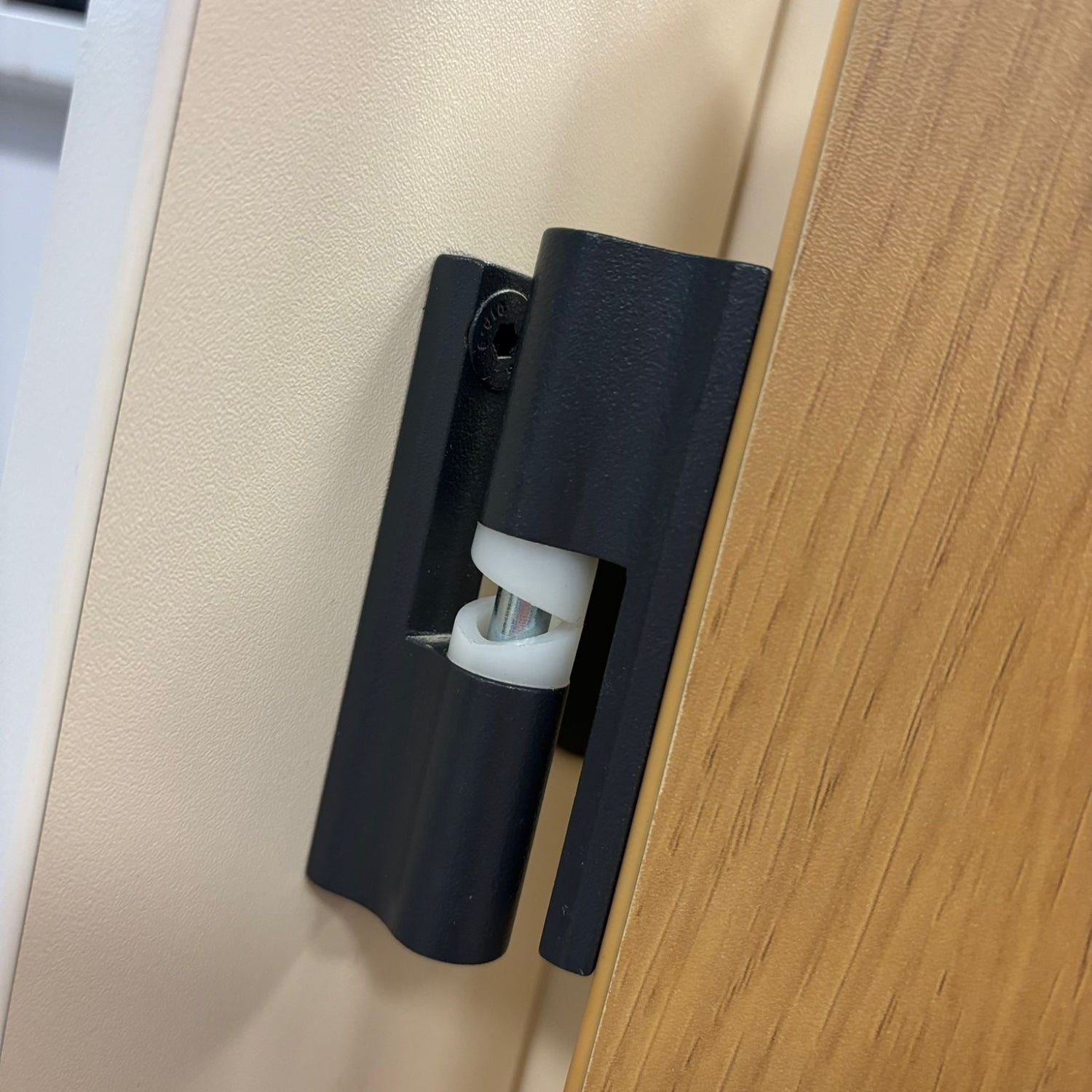

The SGL hinge is specifically designed for compact grade laminate. It wraps around the door, with both the door and the fascia securely double bolted using 'T' nuts for added strength and durability.
This hinge can be easily adjusted to fall open or closed by modifying the nylon risers. Like all our hinges, it can also be set up as a lift-off hinge. In an emergency, a single accessible screw can be removed, allowing the door to be quickly and easily lifted off.
Shop Hinge Packs 12mm
(18mm)
Hinge pairs
The HI4/4 hinge is supplied as standard to suit 18mm panels. It can be adjusted to fall open, fall closed, or hold positions in between by simply modifying the nylon risers.
As with all our hinges, it can also be configured as a lift off hinge. The H14/4 hinge is supplied as standard to suit 18mm panels. It can be adjusted to fall open, closed or hold positions in between by simply modifying the nylon risers. In the event of an emergency, a single accessible screw can be removed allowing the door to be quickly and easily lifted off.
Shop Hinge Pairs (18mm)Wall/Fascia Brackets (18mm)
The WM3/4 Bracket is a low-domed channel bracket designed for 18mm MFC cubicles, secured through the panel using "T" nut fixings. It is supplied in packs of three and includes all necessary wall, fascia, and panel fixing bolts.
Full instructions are available.
Shop Wall/Fascia Brackets (18mm)
(12/18mm)

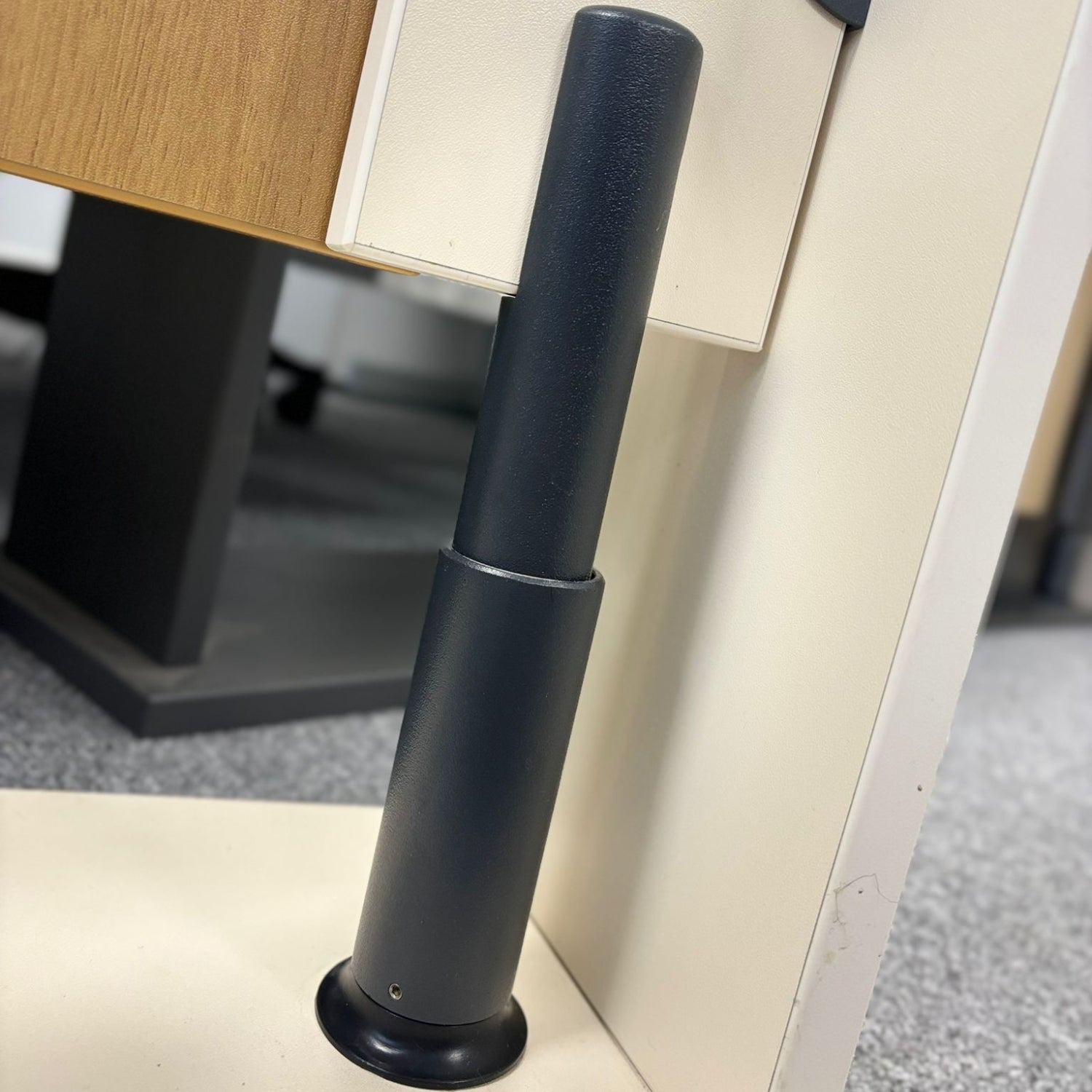

Cubicle Legs
Our cubicle legs are simple to install and feature adjustable heights to suit uneven floors. With a sleek, modern design, they complement a wide variety of hardware styles seamlessly.
The heavy-duty plastic insert foot provides protection against corrosive cleaning fluids, enhancing longevity. Available as standard in a satin anodised finish or powder coated in a colour of your choice.
Shop Pedestal LegsWall/Fascia Brackets (12mm)
The WM3/7 Bracket is a high-domed channel bracket designed for 12mm Solid Grade Compact Cubicles. It features "T" nut fixing through the panel for secure installation. Each pack includes three brackets along with all necessary fixing bolts. Full installation instructions are provided.
The WM3/8 Bracket is a high-domed fascia-fix channel bracket, also suitable for 12mm Solid Grade Compact Cubicles. Like the WM3/7, it uses "T" nut fixing through the panel for added strength. Supplied in packs of three, it includes all fixing bolts and comes with comprehensive installation instructions.
Shop Wall/Fascia Brackets (12mm)
(12/18mm)

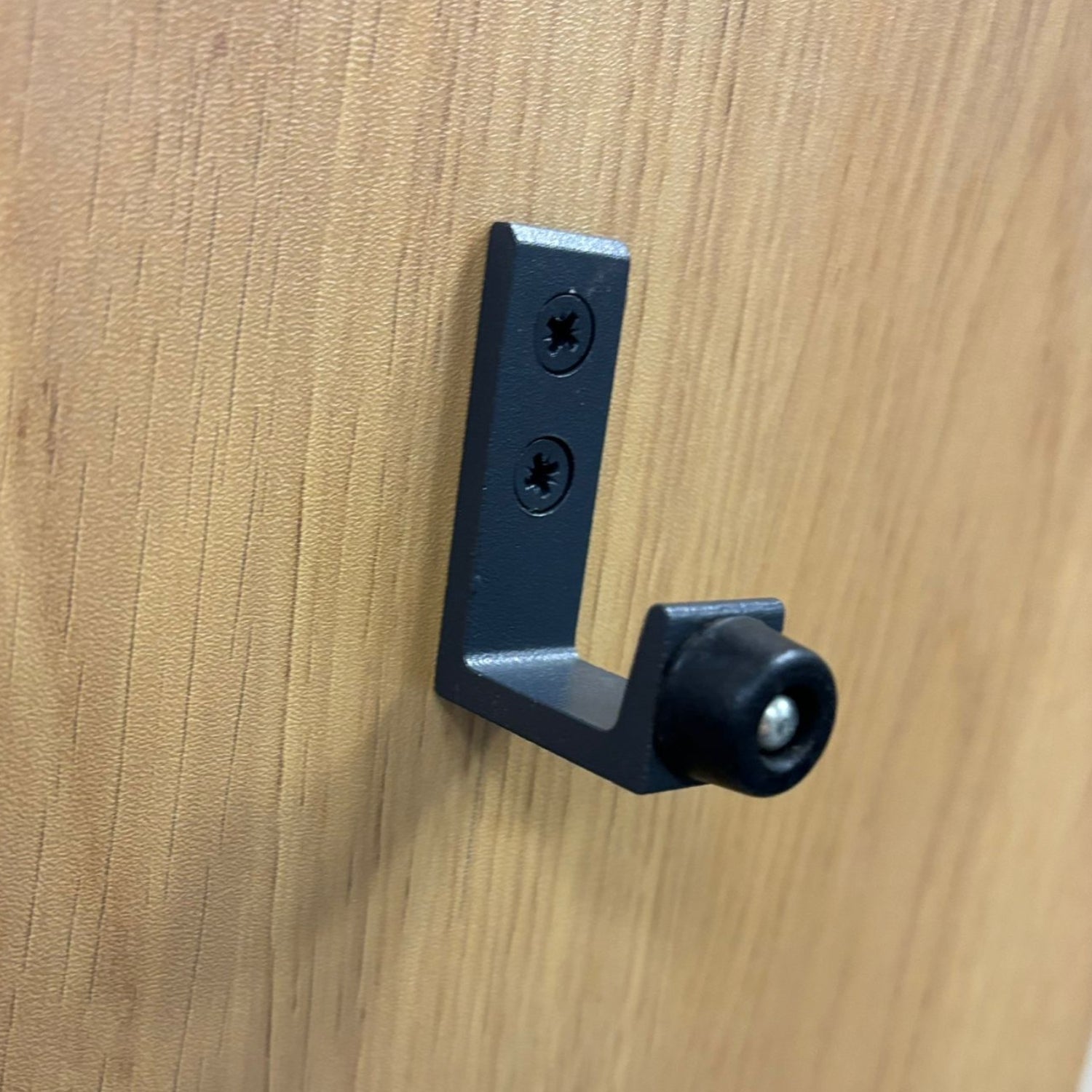

Coat Hooks
Equipped with a rubber buffer to protect the partition from damage when the door swings open. It can be secured using two countersunk screws or bolted through upon request. Designed for use with both Compact Grade and MFC Cubicles, it provides a practical and durable solution.
Shop Coat HooksKeku Panel Clips
Hook or push clip pairs available, with suitable screws. Used to provide a secret fixing to wall
panels and concealment panels in washroom / bathroom areas.
(Prail/Channel)

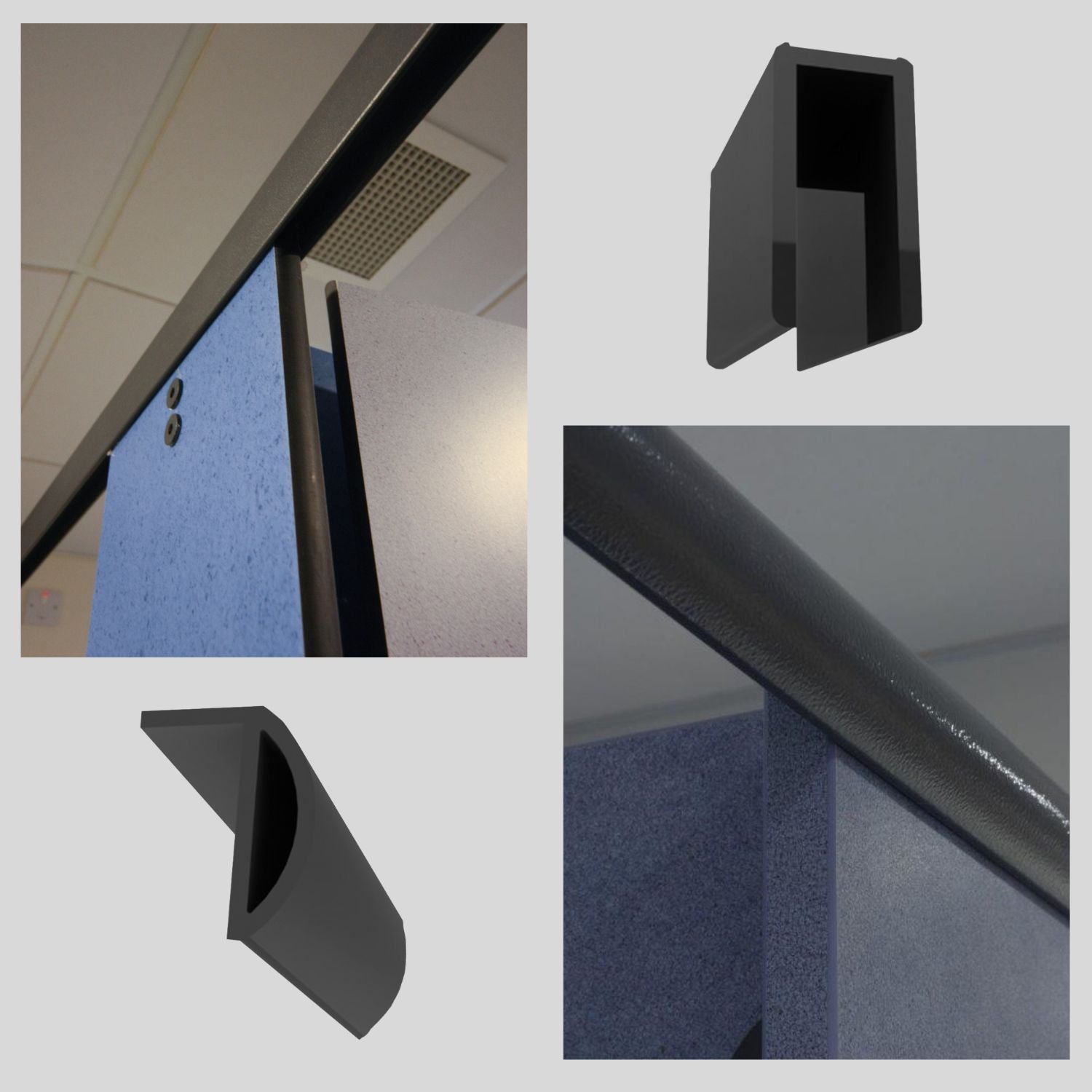

Headrails
Headrail (P-Rail):Features an attractive ‘P’ profile with a premium look and finish, supplied in 3000mm lengths.
Headrail (Channel):Offers an appealing ‘U’ shaped profile with a high-quality finish, also available in 3000mm lengths.
